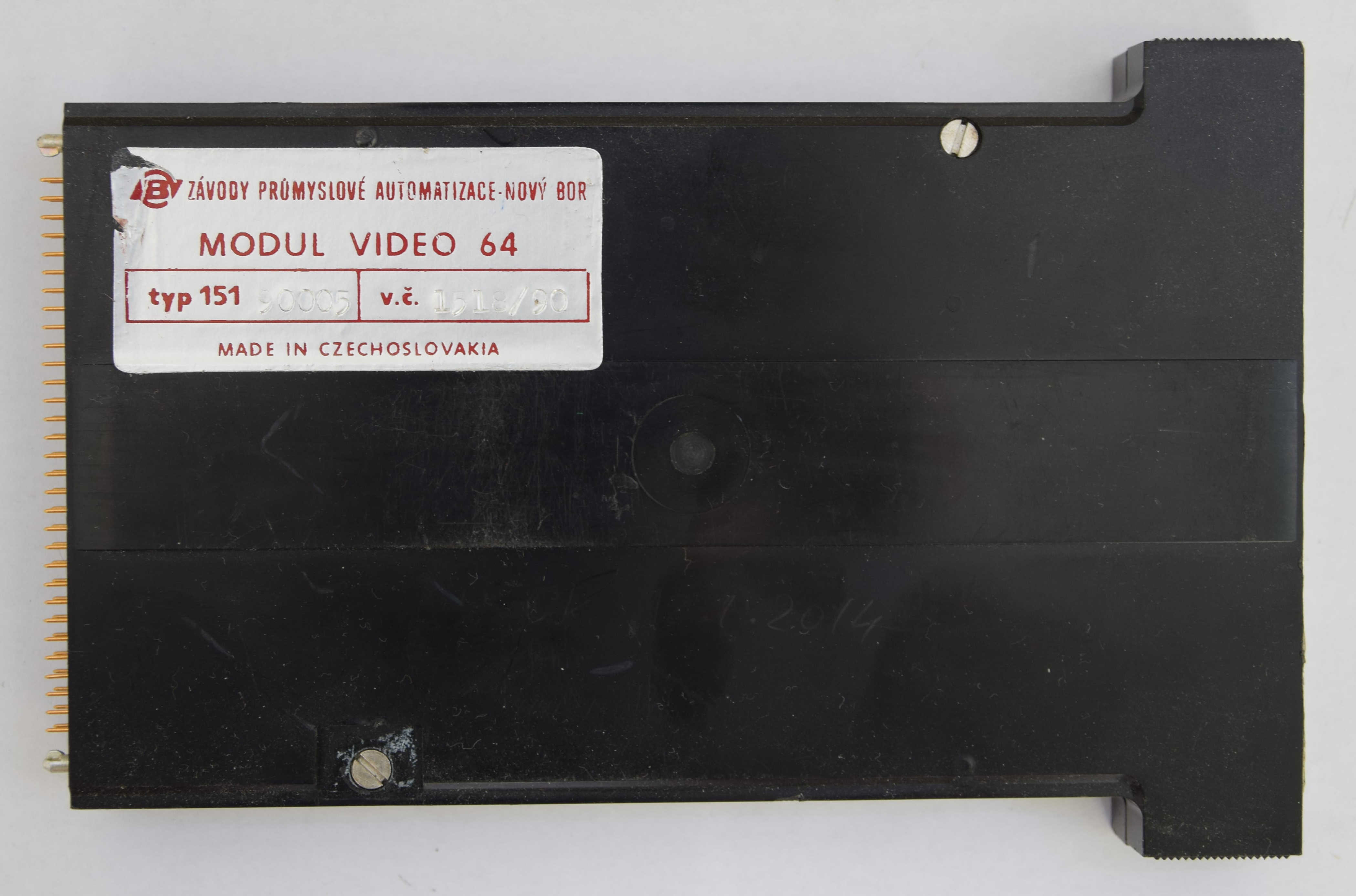

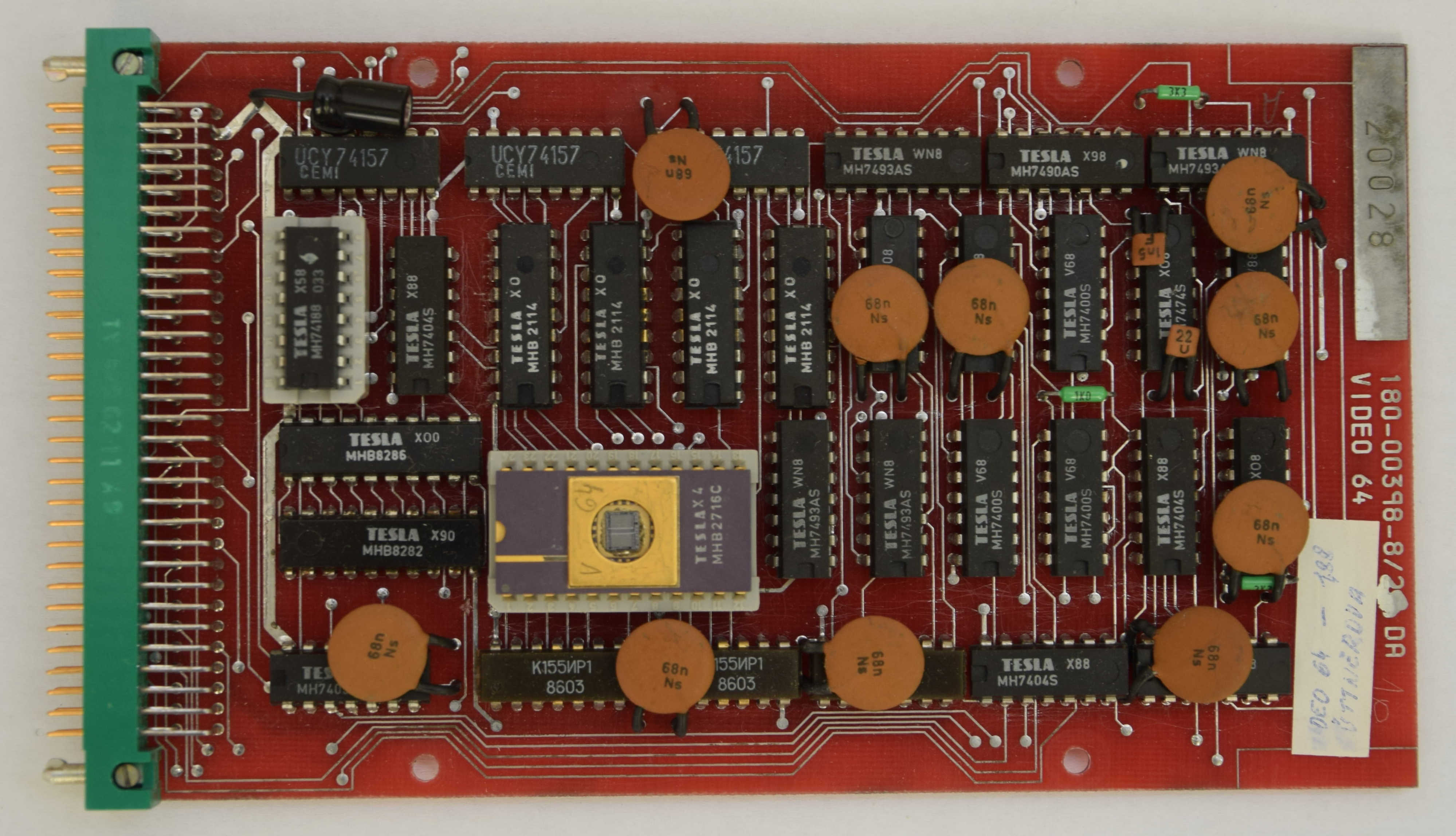

VIDEO64



Budu se zde výhradně věnovat technickým prostředkům a to proto, že již existují stránky které se věnují tomuto počítači např. ZDE (jejich zrcadlo) a nebo ZDE.

Originální a další dokumentace je k dispozici například ZDE a zrcadlo, technický popis nemusí vždy odpovídat schématům, co jsem spáchal, protože až na vzácné výjimky šlo o získaní schémat metodou zpětného inženýrství.

Schéma kompletně získáno metodou zpětného inženýrství.



Popis modulu byl převzat se souhlasem autora z webu www.iq151.net



Obsah PROM dekodéru adres ve formátu INTELHEX.

:20000000070707070707070707070707070707070707070707070707070704050707070309
:00000001FF


Obsah EPROM znakového generátoru ve formátu INTELHEX.

:20000000FFE3C1C1C1E3FFFFFFE3DDDDDDE3FFFFFFF7F7D5E3F7FFFFFFF7E3D5F7F7FFFF4C
:20002000FFF7FBC1FBF7FFFFFFF7EFC1EFF7FFFFFFF7E3C1C1EBFFFFFFEBC1C1E3F7FFFF0C
:20004000FFF7E3C1E3F7FFFFFFE3D5C1D5F7FFFFF7F7F7C7FFFFFFFFF7F7F7F0FFFFFFFF73
:20006000F7F7F7C0FFFFFFFF7F7F7F7F7F7F7F7FF7F7F7C7F7F7F7F7F7F7F7C0F7F7F7F7DE
:20008000FFFFFFF0F7F7F7F7FFFFFFC0FFFFFFFFFFFFFFC0F7F7F7F7F7F7F7F0F7F7F7F794
:2000A000F7F7F7F7F7F7F7F7C7C7C7C7FFFFFFFFF8F8F8F8FFFFFFFFC0C0C0C0FFFFFFFF98
:2000C000FFFFFFFFC7C7C7C7C7C7C7C7C7C7C7C7F8F8F8F8C7C7C7C7C0C0C0C0C7C7C7C7B8
:2000E000EAD5EAD5EAD5EAD5FFFFFFFFEAD5EAD5EAD5EAD5FFFFFFFFFFFFFFC7F7F7F7F770
:20010000FFFFFFFFFFFFFFFFF7F7F7F7F7FFF7FFEBEBEBFFFFFFFFFFEBEBC1EBC1EBEBFF4B
:20012000F7E1D7E3F5C3F7FFCFCDFBF7EFD9F9FFF7EBEBE7D5DBE5FFF7F7EFFFFFFFFFFF11
:20014000FBF7EFEFEFF7FBFFEFF7FBFBFBF7EFFFFFF7D5E3D5F7FFFFFFF7F7C1F7F7FFFF21
:20016000FFFFFFFFEFEFDFFFFFFFFFC1FFFFFFFFFFFFFFFFFFFFEFFFFFFDFBF7EFDFFFFF6B
:20018000E3DDD9D5CDDDE3FFF7E7D7F7F7F7C1FFE3DDFDF3EFDFC1FFC1FDFBF3FDDDE3FF65
:2001A000FBF7EFDBC1FBFBFFC1DFC3FDFDDDE3FFF1EFDFC3DDDDE3FFC1FDFBF7EFEFEFFF17
:2001C000E3DDDDE3DDDDE3FFE3DDDDE1FDFBC7FFFFFFFFFFEFFFEFFFFFFFF7FFF7F7EFFF1F
:2001E000FBF7EFDFEFF7FBFFFFFFC1FFC1FFFFFFEFF7FBFDFBF7EFFFE3DDFDFBF7FFF7FF81
:20020000E3DDD9D5D1DFE3FFF7EBDDDDC1DDDDFFC3DDDDC3DDDDC3FFE3DDDFDFDFDDE3FFF0
:20022000C3EDEDEDEDEDC3FFC1DFDFC7DFDFC1FFC1DFDFC7DFDFDFFFE3DDDFDFD9DDE1FFDE
:20024000DDDDDDC1DDDDDDFFE3F7F7F7F7F7E3FFFDFDFDFDDDDDE3FFDDDBD7CFD7DBDDFF9C
:20026000DFDFDFDFDFDFC1FFDDC9D5D5DDDDDDFFDDDDCDD5D9DDDDFFE3DDDDDDDDDDE3FF9A
:20028000C3DDDDC3DFDFDFFFE3DDDDDDD5DBE5FFC3DDDDC3D7DBDDFFE3DDDFE3FDDDE3FF68
:2002A000C1F7F7F7F7F7F7FFDDDDDDDDDDDDE3FFDDDDDDEBEBF7F7FFDDDDDDD5D5D5EBFF4A
:2002C000DDDDEBF7EBDDDDFFDDDDEBEBF7F7F7FFC1FDFBF7EFDFC1FFC7DFDFDFDFDFC7FF44
:2002E000FFDFEFF7FBFDFFFFF1FDFDFDFDFDF1FFF7EBDDFFFFFFFFFFC0FFFFFFFFFFFFFFFF
:20030000EFF7FBFFFFFFFFFFFFFFE3FDE1DDE1FFDFDFC3DDDDDDC3FFFFFFE1DFDFDFE1FF4F
:20032000FDFDE1DDDDDDE1FFFFFFE3DDC1DFE1FFFBF7F7E3F7F7F7FFFFFFE1DDDDE1FDC343
:20034000DFDFC3DDDDDDDDFFF7FFE7F7F7F7E3FFFBFFF3FBFBFBDBE7DFDFDDDBD7CBDDFF71
:20036000E7F7F7F7F7F7E3FFFFFFEBD5D5D5D5FFFFFFD3CDDDDDDDFFFFFFE3DDDDDDE3FF17
:20038000FFFFC3DDDDC3DFDFFFFFE1DDDDE1FDFDFFFFD3CDDFDFDFFFFFFFE1DFE3FDC3FF53
:2003A000F7F7E3F7F7F7FBFFFFFFDDDDDDD9E5FFFFFFDDDDDDEBF7FFFFFFDDD5D5D5EBFF81
:2003C000FFFFDDEBF7EBDDFFFFFFDDDDDDE1FDC3FFFFC1FBF7EFC1FFF3EFEFDFEFEFF3FF83
:2003E0007F7F7F7F7F7F7F7FE7FBFBFDFBFBE7FFFFFFFFF5EBFFFFFFBFBFBFBFBFBFBFBF7D
:20040000C0DCFEFEFEDCC0C0C0DCE2E2E2DCC0C0C0C8C8EADCC8C0C0C0C8DCEAC8C8C0C090
:20042000C0C8C4FEC4C8C0C0C0C8D0FED0C8C0C0C0C8DCFEFED4C0C0C0D4FEFEDCC8C0C090
:20044000C0C8DCFEDCC8C0C0C0DCEAFEEAC8C0C0C8C8C8F8C0C0C0C0C8C8C8CFC0C0C0C0E9
:20046000C8C8C8FFC0C0C0C0C0C0C0C0C0C0C0C0C8C8C8F8C8C8C8C8C8C8C8FFC8C8C8C83E
:20048000C0C0C0CFC8C8C8C8C0C0C0FFC0C0C0C0C0C0C0FFC8C8C8C8C8C8C8CFC8C8C8C848
:2004A000C8C8C8C8C8C8C8C8F8F8F8F8C0C0C0C0C7C7C7C7C0C0C0C0FFFFFFFFC0C0C0C004
:2004C000C0C0C0C0F8F8F8F8F8F8F8F8F8F8F8F8C7C7C7C7F8F8F8F8FFFFFFFFF8F8F8F8A4
:2004E000D5EAD5EAD5EAD5EAC0C0C0C0D5EAD5EAD5EAD5EAC0C0C0C0C0C0C0F8C8C8C8C8AC
:20050000C0C0C0C0C0C0C0C0C8C8C8C8C8C0C8C0D4D4D4C0C0C0C0C0D4D4FED4FED4D4C08F
:20052000C8DEE8DCCAFCC8C0F0F2C4C8D0E6C6C0C8D4D4D8EAE4DAC0C8C8D0C0C0C0C0C089
:20054000C4C8D0D0D0C8C4C0D0C8C4C4C4C8D0C0C0C8EADCEAC8C0C0C0C8C8FEC8C8C0C039
:20056000C0C0C0C0D0D0E0C0C0C0C0FEC0C0C0C0C0C0C0C0C0C0D0C0C0C2C4C8D0E0C0C0AF
:20058000DCE2E6EAF2E2DCC0C8D8E8C8C8C8FEC0DCE2C2CCD0E0FEC0FEC2C4CCC2E2DCC075
:2005A000C4C8D0E4FEC4C4C0FEE0FCC2C2E2DCC0CED0E0FCE2E2DCC0FEC2C4C8D0D0D0C083
:2005C000DCE2E2DCE2E2DCC0DCE2E2DEC2C4F8C0C0C0C0C0D0C0D0C0C0C0C8C0C8C8D0C03B
:2005E000C4C8D0E0D0C8C4C0C0C0FEC0FEC0C0C0D0C8C4C2C4C8D0C0DCE2C2C4C8C0C8C099
:20060000DCE2E6EAEEE0DCC0C8D4E2E2FEE2E2C0FCE2E2FCE2E2FCC0DCE2E0E0E0E2DCC0E8
:20062000FCD2D2D2D2D2FCC0FEE0E0F8E0E0FEC0FEE0E0F8E0E0E0C0DCE2E0E0E6E2DEC0BA
:20064000E2E2E2FEE2E2E2C0DCC8C8C8C8C8DCC0C2C2C2C2E2E2DCC0E2E4E8F0E8E4E2C0BC
:20066000E0E0E0E0E0E0FEC0E2F6EAEAE2E2E2C0E2E2F2EAE6E2E2C0DCE2E2E2E2E2DCC07E
:20068000FCE2E2FCE0E0E0C0DCE2E2E2EAE4DAC0FCE2E2FCE8E4E2C0DCE2E0DCC2E2DCC070
:2006A000FEC8C8C8C8C8C8C0E2E2E2E2E2E2DCC0E2E2E2D4D4C8C8C0E2E2E2EAEAEAD4C04E
:2006C000E2E2D4C8D4E2E2C0E2E2D4D4C8C8C8C0FEC2C4C8D0E0FEC0F8E0E0E0E0E0F8C014
:2006E000C0E0D0C8C4C2C0C0CEC2C2C2C2C2CEC0C8D4E2C0C0C0C0C0FFC0C0C0C0C0C0C019
:20070000D0C8C4C0C0C0C0C0C0C0DCC2DEE2DEC0E0E0FCE2E2E2FCC0C0C0DEE0E0E0DEC087
:20072000C2C2DEE2E2E2DEC0C0C0DCE2FEE0DEC0C4C8C8DCC8C8C8C0C0C0DEE2E2DEC2FC53
:20074000E0E0FCE2E2E2E2C0C8C0D8C8C8C8DCC0C4C0CCC4C4C4E4D8E0E0E2E4E8F4E2C0E5
:20076000D8C8C8C8C8C8DCC0C0C0D4EAEAEAEAC0C0C0ECF2E2E2E2C0C0C0DCE2E2E2DCC0FF
:20078000C0C0FCE2E2FCE0E0C0C0DEE2E2DEC2C2C0C0ECF2E0E0E0C0C0C0DEE0DCC2FCC083
:2007A000C8C8DCC8C8C8C4C0C0C0E2E2E2E6DAC0C0C0E2E2E2D4C8C0C0C0E2EAEAEAD4C015
:2007C000C0C0E2D4C8D4E2C0C0C0E2E2E2DEC2FCC0C0FEC4C8D0FEC0CCD0D0E0D0D0CCC0D3
:2007E0004040404040404040D8C4C4C2C4C4D8C0C0C0C0CAD4C0C0C0808080808080808099
:00000001FF

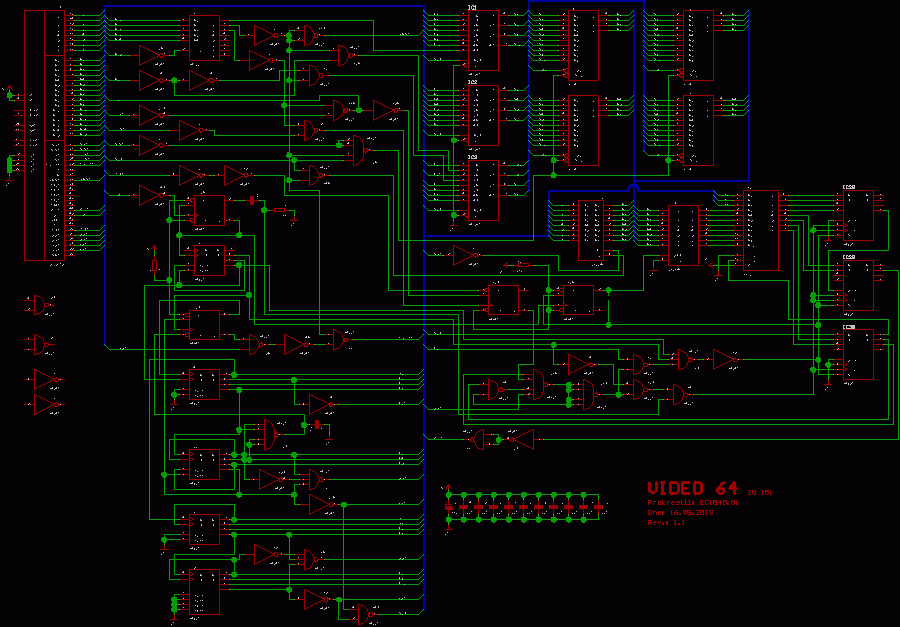

Schéma VIDEO64 a černobílá verze ZDE.

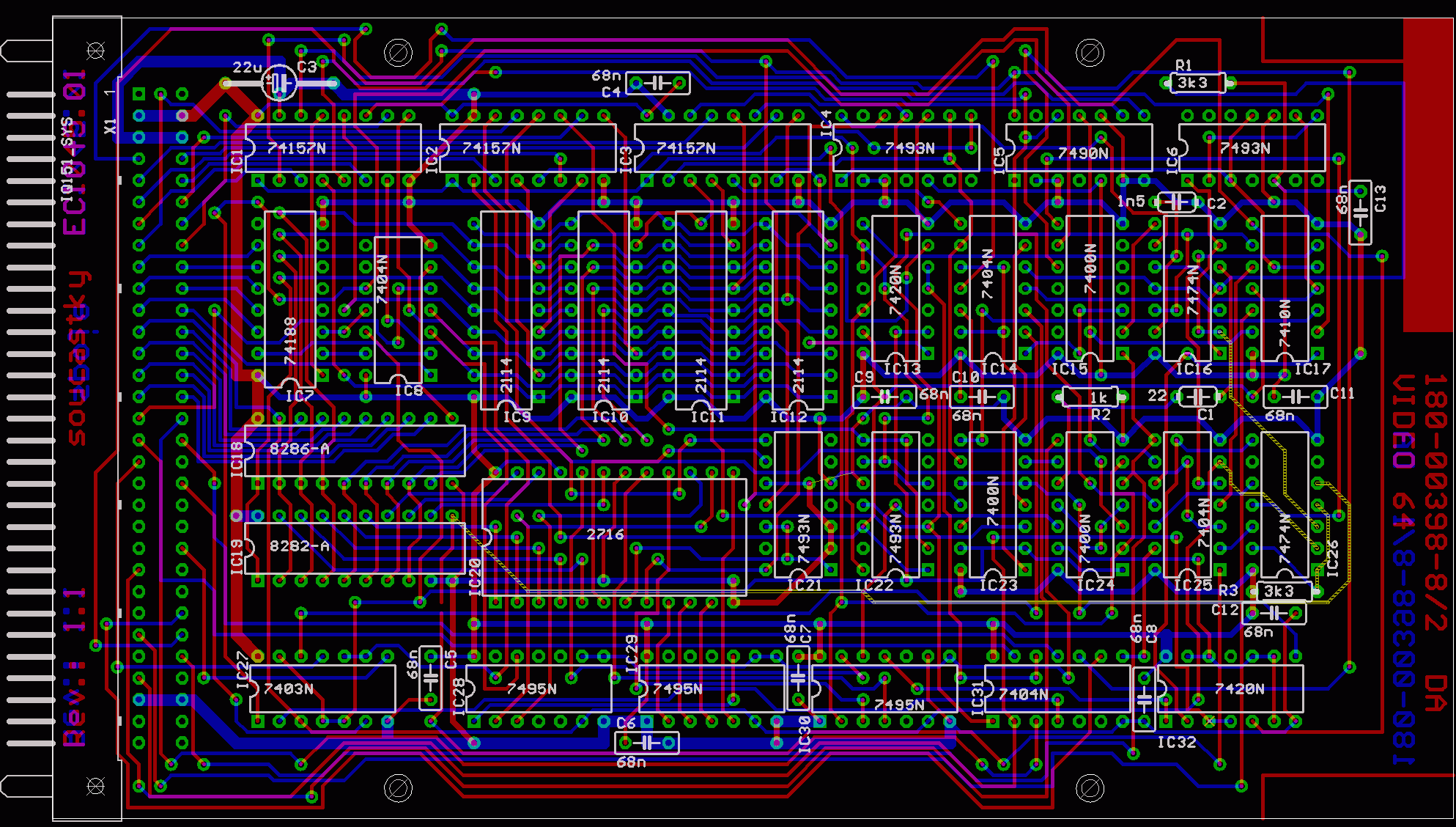

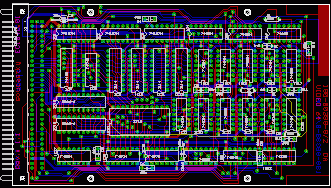

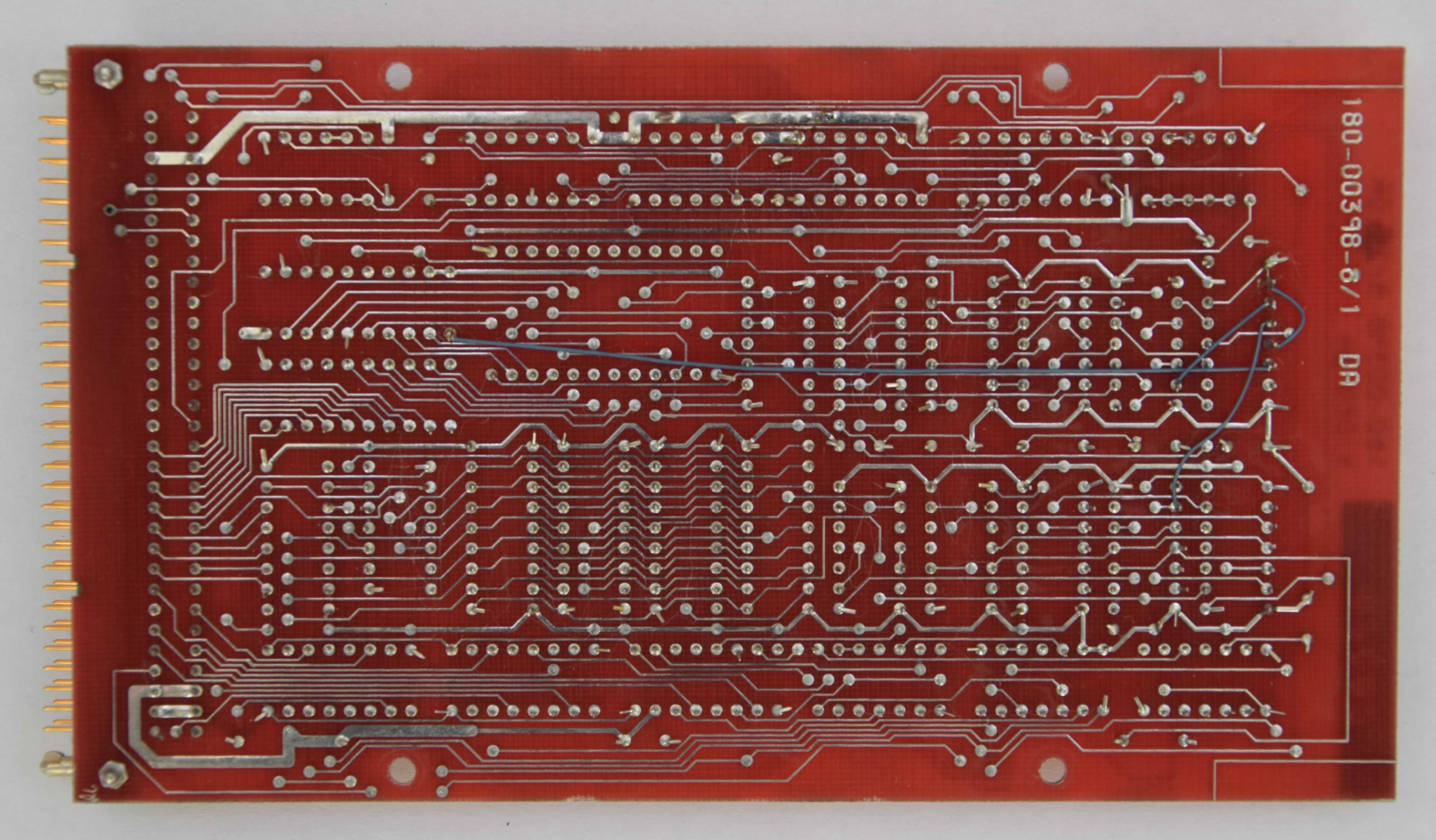

DPS VIDEO64
